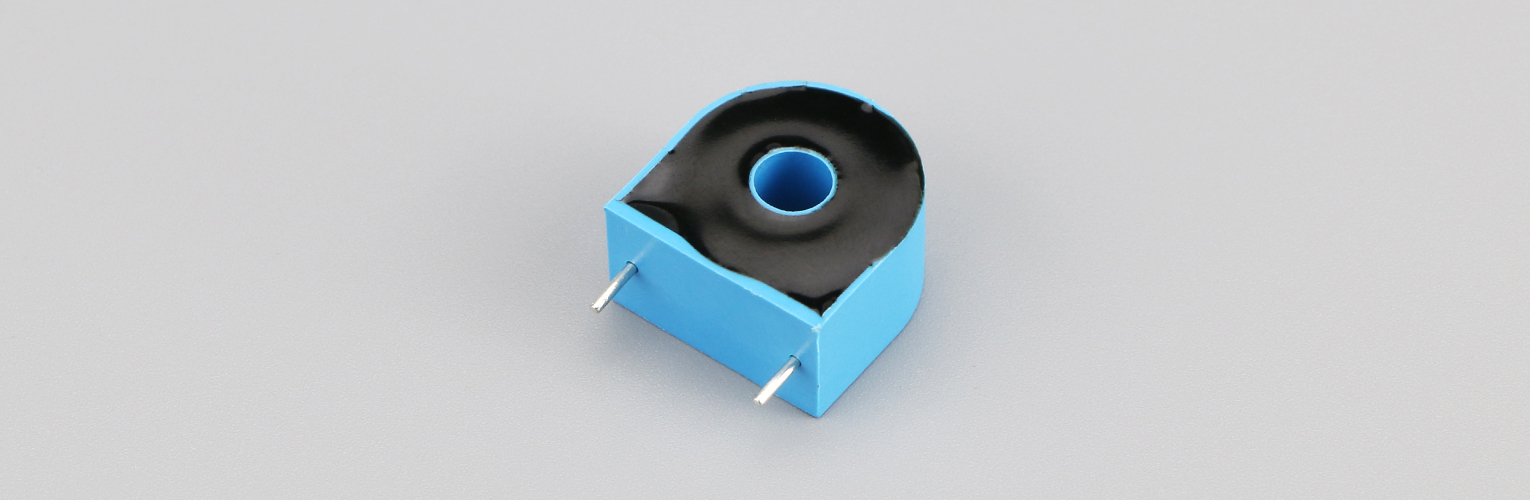

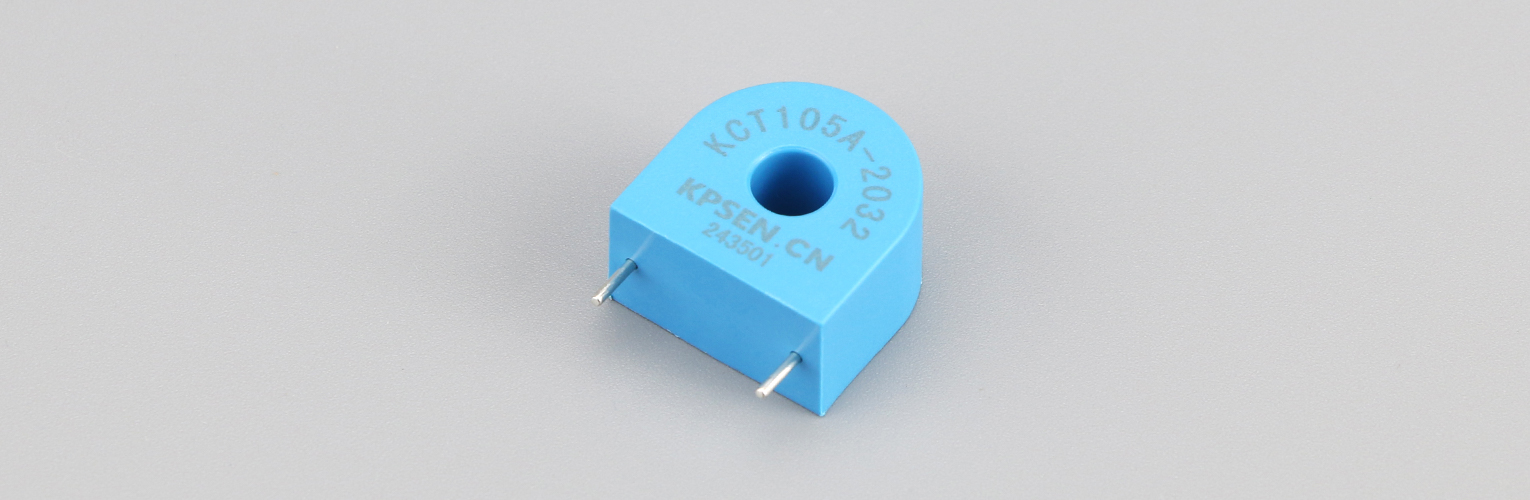

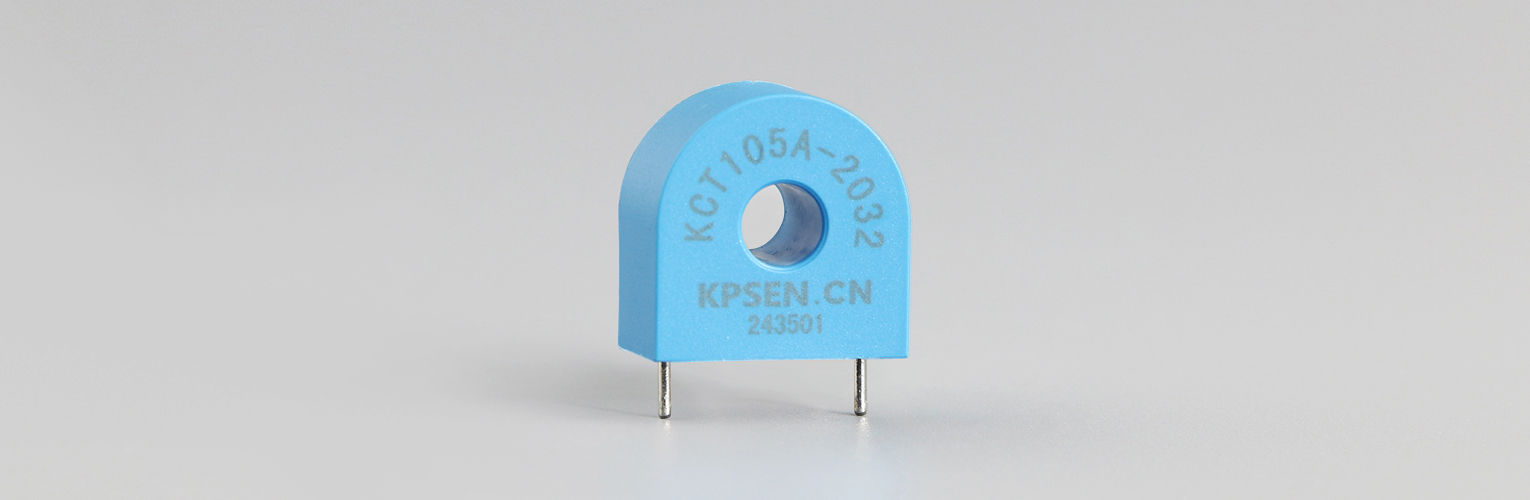

Rated current: 0~40A; Secondary output: 0~20mA; Current ratio: 1:1000/1:2000
Suitable for the need to convert large current into small current for precision measurement, or as electrical safety protection.
Passed ISO 9001:2015; Fully compliant with RoHS and REACH requirements
ELECTRICAL PROPERTIES(at 25°C) | ||||||||||
Model number | Rated current | Secondary current | Maximum current | Turn ratio | Linear range | Phase difference | Precision | Load resistance | Withstand voltage | Operating frequency |
KCT105A-1005 | 5A | 5mA | 10A | 1000:1 | 5~120% | ≤15’ | 0.1 | ≤10Ω | 4000V | 50Hz~20KHz |
KCT105A-2005 | 5A | 2.5mA | 20A | 2000:1 | 5~120% | ≤15’ | 0.1 | ≤20Ω | 4000V | 50Hz~20KHz |
KCT105A-2032 | 32A | 16mA | 40A | 2000:1 | 5~120% | ≤10’ | 0.1 | ≤50Ω | 4000V | 50Hz~20KHz |
KCT105A-2040 | 40A | 20mA | 50A | 2000:1 | 5~120% | ≤10’ | 0.1 | ≤50Ω | 4000V | 50Hz~20KHz |
Note: 1、Pay attention to the load attached to the transformer secondary. Exceeding the rated load capacity may cause the Precision to degrade or saturate.
2、If there is no suitable product for your use in the above table, we can customize the product according to your technical and structural requirements.

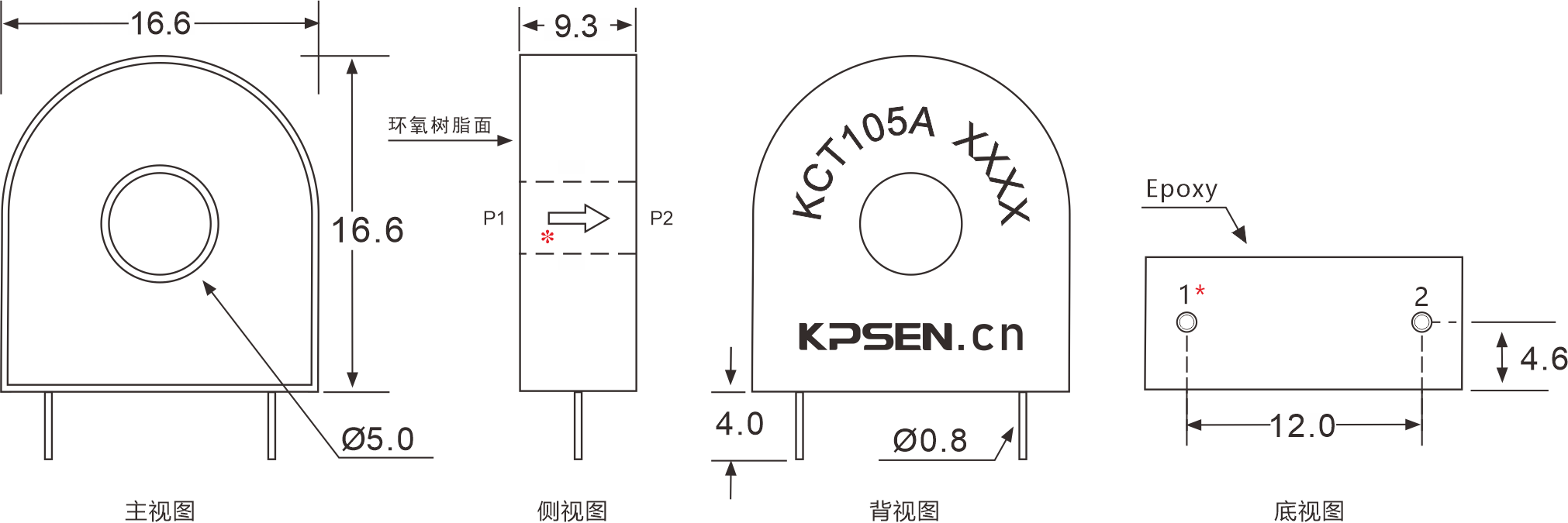

Unit of size： (mm）
Dimensional tolerance： ±0.5mm(unless otherwise specified), foot distance tolerance: ±0.3mm
Note: Terminal resistors and a turn primary are not provided unless requested
Vout=Is x RL RL=10 Ohm
Note: This schematic shows the basic working principle of the transformer, which can be used to design the sampling circuit of the transformer for customers
