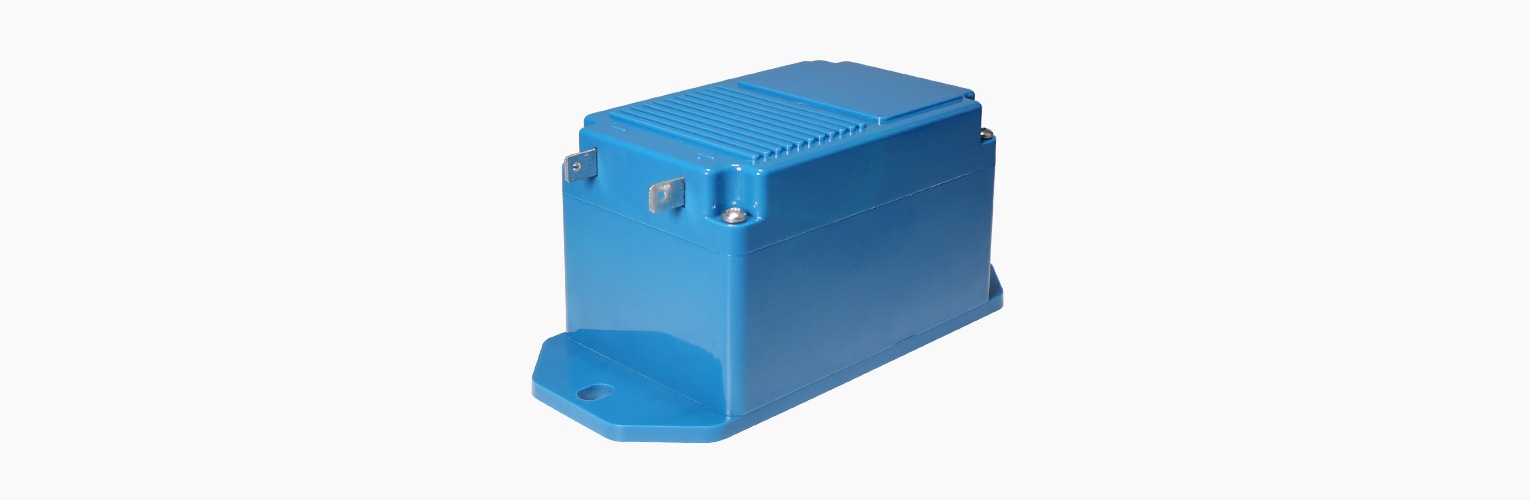

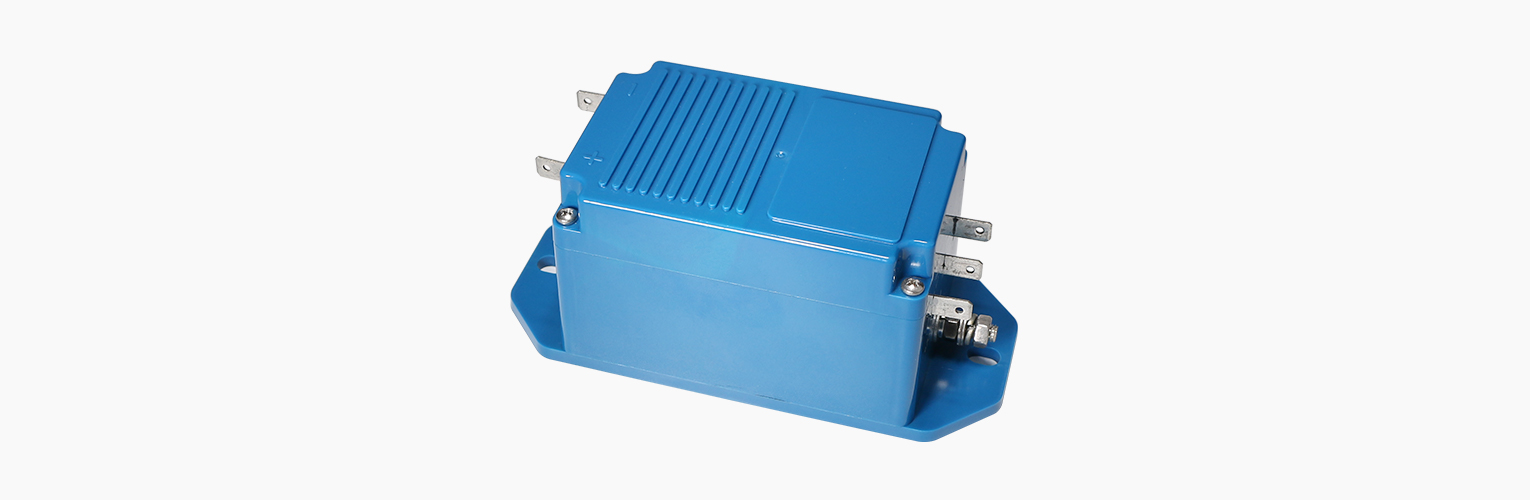

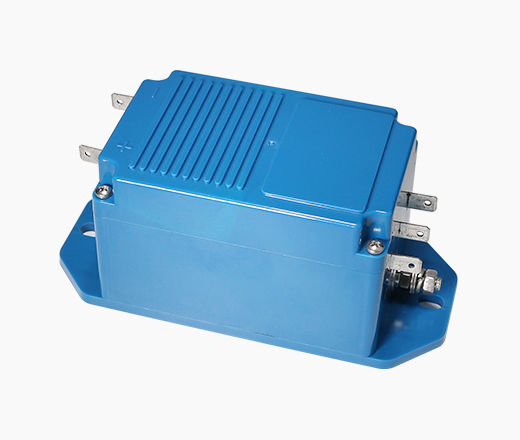

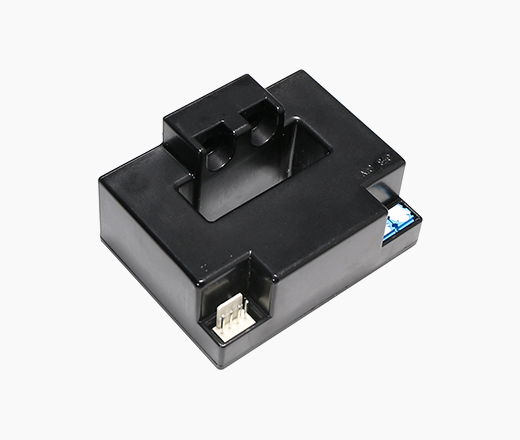

Rated measuring current: ±1000V; Measuring range: ±1200V; Rated output voltage: ±5V
Zero offset voltage: ±10mV; Power supply voltage: ±15VDC (±5%)
Passed ISO 9001:2015; Fully compliant with RoHS and REACH requirements
Easy to install
Small size, save space
No insertion loss
Strong anti-interference ability
AC variable speed driver
DC motor drives static converter
Communication power supply
Uninterrupted power supply
Switching power supply
Electric welding machine
Passed ISO 9001:2015
Reference standard: JB/T 7490-2007;
Storage environment: Temperature -40℃~ +125℃, relative humidity: not more than 95%(25℃)
ELECTRICAL PROPERTIES(Environmental parameters are @TA = 25 ° C, RL = 10 kΩ unless otherwise stated) | |
Model number | KVD3-1000V |
VP Rated input | ±1000V |
VPM Measure range | ±1200V |
Rated output voltage VOUT | ±5V |
Offset voltage VO | ±10mV |
Supply voltage VC | ±15V DC（± 5%） |
Load resistance RM | ≥100KΩ |
Linearity εL | ≤0.1%FS |
Overall accuraty X | ±0.3%FS |
Offset voltage drift VOUT | ±0.5mV/℃ |
VOUT Amplitude voltage temperature drift | ≤0.01%/℃ |
Current consumption IC | ≤50mA |
Frequency bandwidth-3db BW | DC-20KHz |
Response time TR | <120us |
Primary resistance | >1.5MΩ |
Galvanic isolation VD | 50Hz，1min，6KV |
Ambient operating temperature TA | -20～+75℃ |
Ambient storage temperature TS | -40～+85℃ |
Mass m | ≈660g |
Customized: If there is no suitable product for your use in the above table, we can customize the product according to your technical and structural requirements. Please contact us.

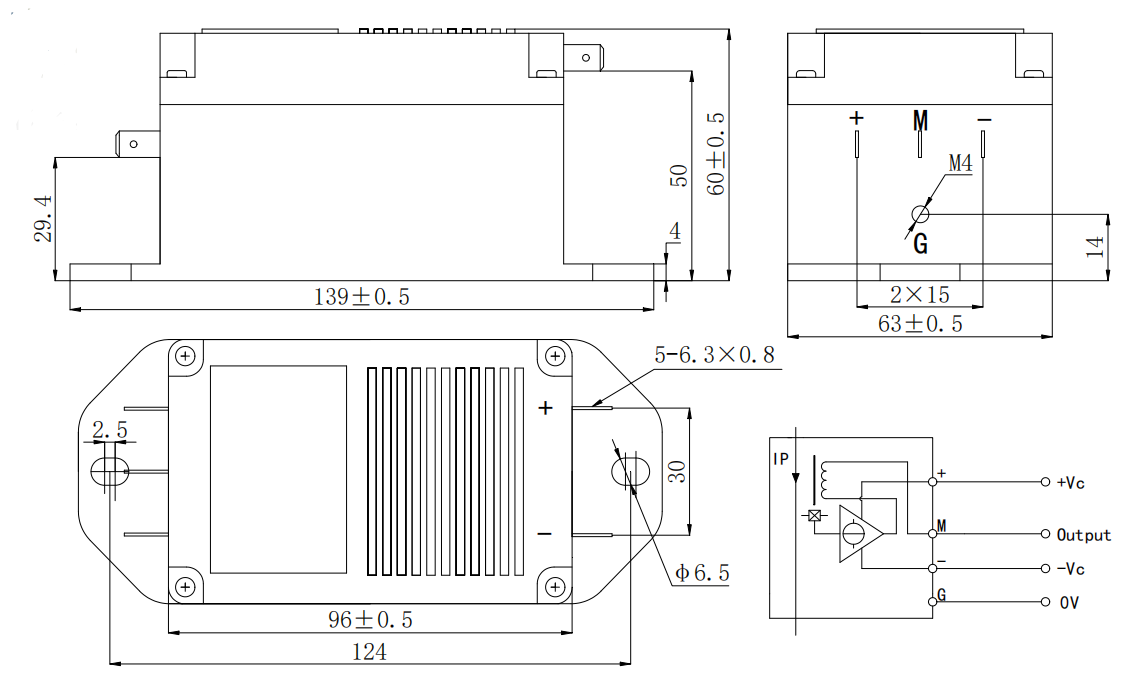

Mechanical characteristics | |
General tolerance | ± 0.5 mm |
Other tolerance execution | GB/T 1804-2000-M |
Connection of secondary | 6.3mm x 0.8mm insert |
Fixing hole size | Φ6.5mm |
Fastening steel screw | M6 |
Recommended fastening torque | 0.7Nm (± 10 %) |
Recommended wave soldering temperature | 265℃±5℃ |
Remarks:
The false wiring may result in the damage of the sensor.
VOUT is positive when IP flows in the direction of the arrow.
Dynamic performances (di/dt and response time) are best with a single bar completely filling the primary hole.
Temperature of the primary conductor should not exceed 100°C.
