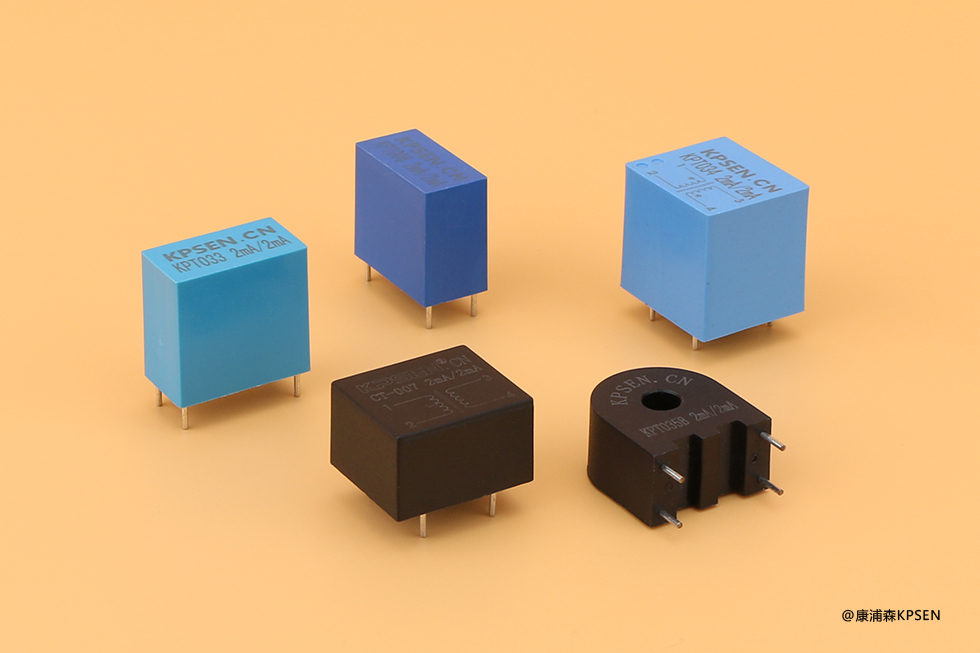

This product is a current type voltage transformer, the primary through the circuit into the resistance, the voltage into the current, through the transformer as the current conversion, the secondary output current signal through the sampling resistance into the required voltage.
Electrical performance:
(1), rated input current: 2mA(according to customer requirements)
(2), rated output current: 2mA(according to customer requirements)
(3), turn ratio: 1000:1000
(4) Linear range: 5%~120%
(5) Accuracy: 0.2
(6) Frequency characteristics: 50hz~60hz
(7) Load resistance: ≤20Ω
(8) Power frequency withstand voltage: 3kV 2mA 1min
(9) Shell: PBT high temperature flame retardant or ABS flame retardant material
