First, appearance and structure: delicate and small, originality

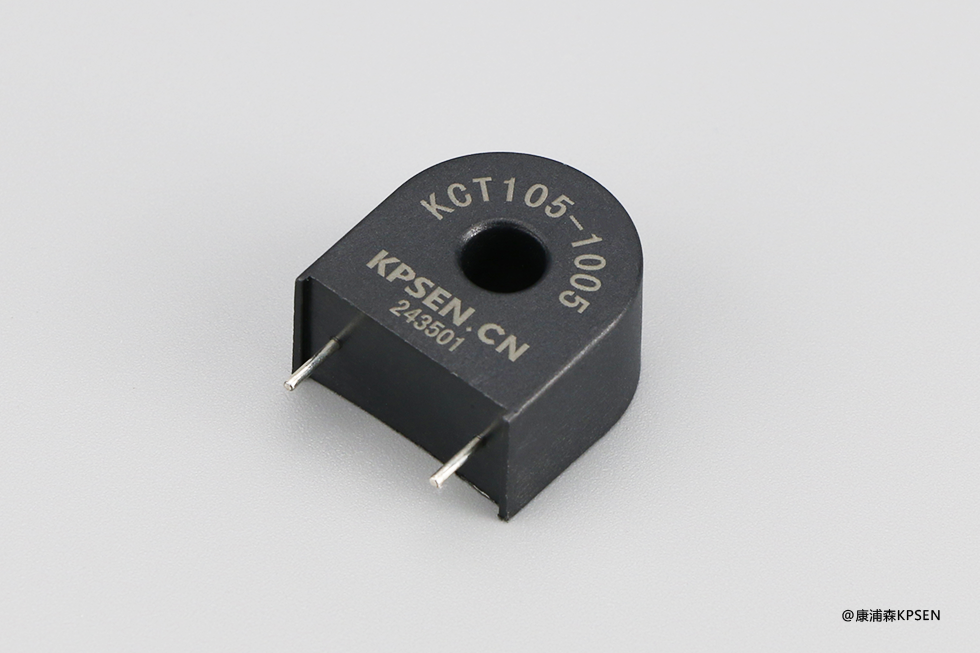

First see KPSEN KCT105 miniature precision current transformer, the first impression is its delicate body. Compared with the slightly bulky body of the traditional current transformer, the KCT105 is like a delicate "elf", and the compact size makes it easy to embed in various small Spaces, providing great convenience for the compact layout of the equipment.
From the housing material point of view, the selection of high-quality flame retardant PBT or ABS material, not only durable, enough to withstand the daily use of minor collision and mechanical impact, but also has a flame retardant class of UL94-V0 excellent fire performance. This means that even if the equipment encounters the hidden danger of open fire caused by abnormal heating and short circuit, the KCT105 can also stand its ground and avoid the fire from further spreading due to the burning of the transformer shell, which greatly improves the safety of the overall equipment.
Open the shell and take a closer look at the internal structure, you will find that the craftsmanship is superb. The wire used in winding the coil has a very low resistance, ensuring that the energy loss during current transmission is minimal; The core part of the magnetic core is the use of advanced high-conductivity permalloy or nanocrystalline materials. These materials have the inherent advantage of high permeability, like an efficient "current carrier", can accurately capture and guide weak current signals, laying a solid foundation for subsequent high-precision measurement; Coupled with the precision PCB welding process, so that the internal line connection is stable and reliable, and then with epoxy resin potting treatment, as to the transformer covered with a tough "armor", seismic and moisture-proof performance is excellent, to further ensure its stable operation under complex conditions.
Second, excellent performance parameters: the perfect combination of accuracy and stability
(1) The measurement accuracy is second to none

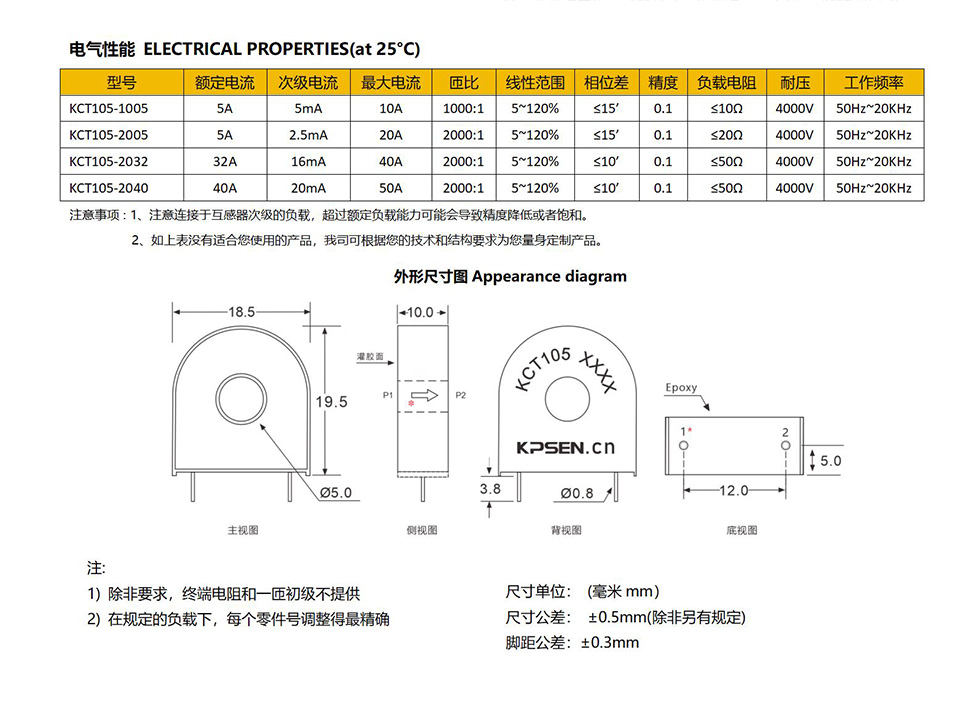

In the field of electrical measurement, accuracy is called the "lifeline", and the KCT105 miniature precision current transformer is outstanding in this respect. The ratio difference is strictly controlled within ≤±0.1%, and the phase difference is as low as ≤±5 points. This means that when the actual current flows through the transformer, the deviation between the measured value and the true value is very small and almost negligible. Whether it is the current monitoring of precision instruments in the laboratory or the power control on industrial production lines, such high precision ensures the reliability of data, provides a solid basis for scientific research experiments and quality control, and enables technicians to make accurate decisions to avoid production errors or experimental deviations caused by measurement errors.
(2) Wide frequency adaptability
The operating frequency range is set at 50-400Hz, which covers the common power frequency and the operating frequency of most low-frequency electrical equipment. This wide frequency adaptation range enables it to operate in different power scenarios. Such as the traditional power grid frequency 50Hz power supply environment, or some frequency conversion equipment operating in the 100Hz-300Hz range to adjust the motor speed, KCT105 can be stable induction, accurate measurement of current changes, for the smooth operation of the equipment escort, there is no need to worry about the frequency fluctuations beyond the transformer working range and the phenomenon of "strike".
(3) Excellent insulation and environmental resistance
In terms of insulation performance, it has a medium strength of 2.5KV/1mA/1min, which can withstand high voltage impact, effectively isolate the primary and secondary circuits, eliminate potential leakage hazards, and ensure the personal safety of operators and the normal operation of connected equipment; The insulation resistance can reach more than 100MΩmin under DC500V test conditions, which further proves its insulation reliability. In terms of environmental adaptability, the operating temperature span is from -25℃ to +75℃, whether it is a cold outdoor substation low temperature environment, or a hot factory workshop near the heating equipment, KCT105 can work stably. And the relative humidity ≤85% tolerance, so that in the wet rainy season, water vapor filled boiler room and other special wet scenes, still adhere to the measurement mission, not affected by water vapor erosion interference.
Three, multiple application scenarios: multi-field "right-hand man"
(1) Smart grid frontier position
In the wave of smart grid construction, KCT105 miniature precision current transformer plays a key role. In the substation, it is responsible for real-time monitoring of the current situation of each transmission line and substation equipment, and accurately return the data to the monitoring system. Once the line is overloaded, short circuit and other fault hazards, with high-precision measurement, operation and maintenance personnel can quickly detect abnormal current fluctuations, accurately locate the fault point in the first time, timely repair, greatly reduce the duration and scope of power outage, and ensure the continuity of power supply. In the distributed energy access link, such as small photovoltaic power plants, wind farms connected to the grid, it helps to accurately measure power generation, monitor the quality of grid current, and help clean energy to efficiently integrate into the large grid system.
(2) Industrial automation production line "gatekeeper"
In the era of Industry 4.0, automated production lines have high requirements for equipment operation stability and energy consumption control. The KCT105 is widely installed in various types of motors, drives, and distribution cabinets. In the automobile manufacturing line, many robots and electric equipment work together, which accurately monitors the motor running current. When the motor surges due to mechanical stall or abnormal load changes, the control system quickly adjusts parameters according to the transformer feedback, stops and repairs, and avoids equipment damage and defective products. In high energy consumption industries such as metallurgy and chemical industry, it closely watches the current of production equipment throughout the whole process, accurately statistics the energy consumption of each period, and gives detailed data support for the development of energy conservation and emission reduction and cost control strategies for enterprises.
(3) Smart home behind the scenes "guardian"
Into the smart home scene, although KCT105 is hidden in the interior of household appliances, the role can not be underestimated. Intelligent air conditioners, refrigerators, washing machines and other high-power electrical appliances, their operating status is related to household electricity safety and energy consumption. The transformer monitors the electrical working current in real time. When the current changes abnormally, it indicates that the equipment may fail, and the intelligent system immediately pushes an early warning message to the user's mobile phone. At the same time, under the implementation of the residential ladder electricity pricing model by the power company, it works with smart meters to accurately measure the electricity consumption of household appliances, provide a basis for reasonable household electricity planning, and help users to save electricity expenses.
(4) Scientific research experiments accurate "weights and measures"
In scientific research institutes and university laboratories, various cutting-edge electrical experiments are critical of measurement accuracy. The KCT105 miniature precision current transformer is the first choice for many research projects. In the research and development experiments of power electronic devices, the precise measurement of small current changes in the on-off moments of semiconductor switching devices helps researchers analyze device performance and optimize circuit design; In the charging and discharging test of new energy batteries, the charging current is accurately controlled to ensure that the experimental data truly reflect the characteristics of the battery, provide reliable data reference for the research and development of high-performance batteries, and promote the iteration of new energy technologies.
Four. Competitive advantage highlights: the key characteristics that stand out
Compared with similar current transformers in the market, KPSENKCT105 has significant advantages. In the pursuit of miniaturization and integration of equipment, it can easily adapt those electronic products that are haggle over the internal space, and "reduce the burden" for the compact design of products. The leading precision is its core competitiveness. The data performance of low specific difference and small phase difference is far better than that of many competing products, which means that using KCT105 can obtain more reliable measurement results and reduce the risk of R & D and production caused by errors. In terms of material selection and technology, high-conductivity Permalloy and nanocrystalline magnetic cores are combined with superb welding and potting processes to give them more stable electrical properties and stronger mechanical resistance, and their service life is much higher than that of ordinary products; At the price level, adhering to the cost-effective route, enterprises can obtain high-quality measurement solutions without high costs, and find a delicate balance between cost control and performance needs, which is very attractive in the market.
Fifth, future outlook: unlimited potential, continuous leadership
With the booming development of the Internet of Things, artificial intelligence, new energy and other industries, electronic and electrical equipment is increasingly moving toward miniaturization, intelligence, and high efficiency, and the demand for precision current measurement is only increasing. KPSENKCT105 micro precision current transformer with the existing technology accumulation and performance advantages, has been standing in the forefront of the industry. Looking forward to the future, the R&D team is expected to further expand its frequency application range to meet the needs of higher frequency electrical equipment innovation; With the breakthrough of new material research and development, continue to optimize the performance of the magnetic core, improve the accuracy limit; Integrated intelligent sensing technology, giving the transformer self-diagnosis, remote data interaction capabilities, seamless access to intelligent operation and maintenance system. At that time, KCT105 will shine in more emerging fields, help the global electronic and electrical industry to reach a higher peak, and continue to write its own legendary chapter.
