Input current: 0~2000A; Output current: 0~100mA; Output voltage: 0~1V
General measurement and protection in power systems for highly mobile or spatially narrow or uninterrupted power systems.
Passed ISO 9001:2015; Fully compliant with RoHS and REACH requirements

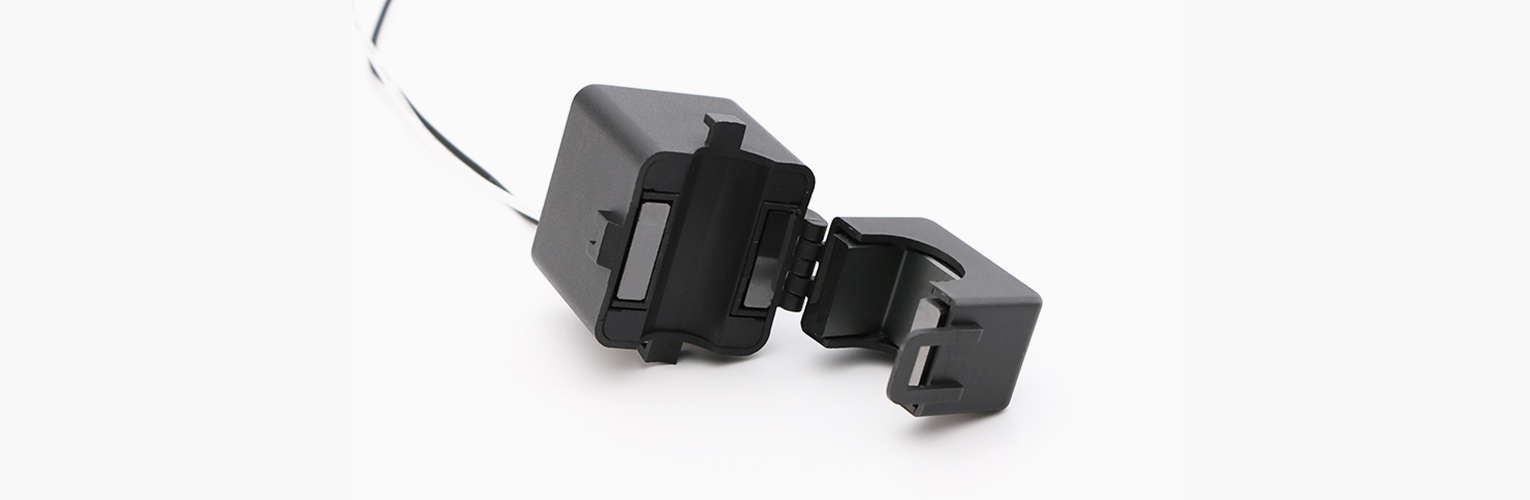

Split core design, small core loss, high precision
No need to disconnect the bus, convenient installation, does not affect the normal power consumption of customers
Beautiful appearance, small size, light weight

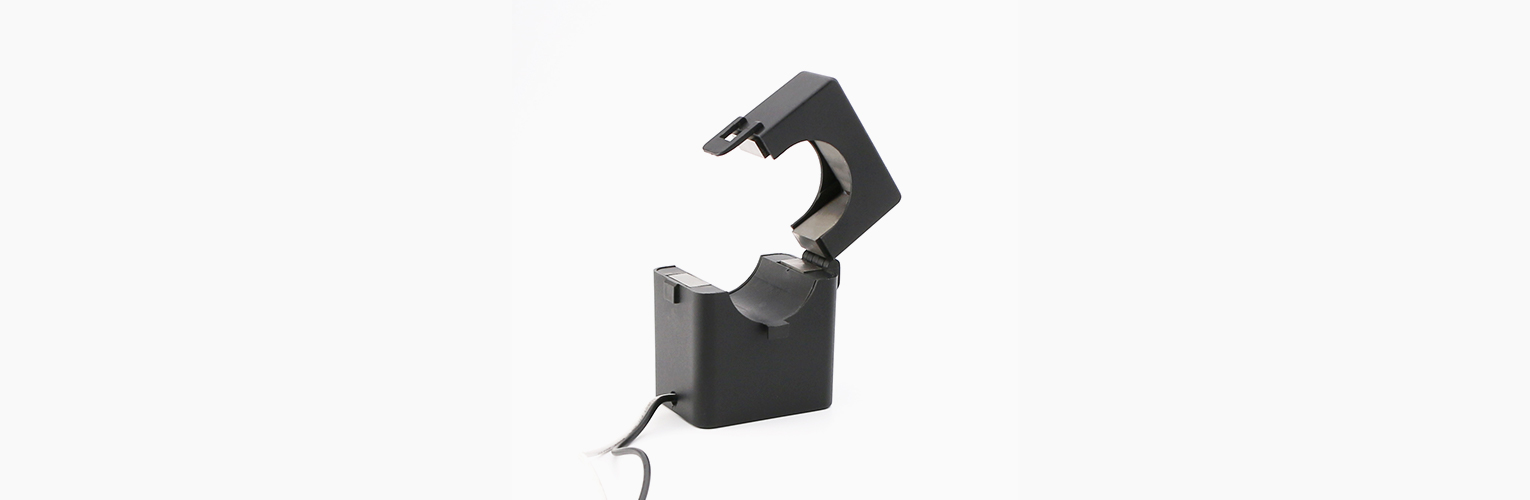

Buckle opening and closing structure, convenient opening and closing
The maximum voltage of the equipment is 0.66kV
Rated input 0 to 2000A
Rated output 5A/1A/mA/mV
Operating frequency 50Hz~60HZ
Power frequency withstand voltage 4000V/1mA/1min (50Hz)
Insulation resistance DC500V/1000M2/min
Operating environment: Temperature -40℃~ +85℃
Storage environment: Temperature -40℃~ +85℃
Relative humidity: not more than 95%(25℃)
Reference standard: IEC 60044-1&GB&T 20840.1-2017&ANSI C57.13
ELECTRICAL PROPERTIES(at 25°C) Output currentmA/mV | ||||||
Model number | Input current | Maximum current | Output current | Output voltage | Load resistance | Precision |
KCT-FK06 | 0-25A | 30A | 0-100mA | 0-1V | 0-10Ω | 1.0 |
KCT-FK10 | 0-63A | 63A | 0-100mA | 0-1V | 0-10Ω | 1.0 |
KCT-FK16 | 0-120A | 150A | 0-100mA | 0-1V | 0-10Ω | 0.5/1.0 |
KCT-FK20 | 0-200A | 240A | 0-100mA | 0-1V | 0-10Ω | 0.5/1.0 |
KCT-FK24 | 0-300A | 360A | 0-100mA | 0-1V | 0-10Ω | 0.5S/0.5 |
KCT-FK36 | 0-600A | 720A | 0-100mA | 0-1V | 0-10Ω | 0.5S/0.5 |
KCT-FK50 | 0-1000A | 1200A | 0-100mA | 0-1V | 0-10Ω | 0.2/0.5S |
KCT-FK50B | 0-1000A | 1200A | 0-100mA | 0-1V | 0-10Ω | 0.2/0.5S |
KCT-FK64 | 0-2000A | 2000A | 0-100mA | 0-1V | 0-10Ω | 0.2/0.5S |
ELECTRICAL PROPERTIES(at 25°C) Output current5A/1A | |||||
Model number | Input current（A） | load（VA） | |||
0.2 | 0.5S | 0.5 | 1.0 | ||
KCT-FK24 | 100 | / | / | / | / |
200 | / | / | / | 1 | |
300 | / | / | 1 | 2.5 | |
KCT-FK36 | 300 | / | / | 1 | 2.5 |
400 | / | 1 | 2.5 | 5 | |
500 | / | 2.5 | 5 | 7.5 | |
600 | / | 2.5 | 5 | 7.5 | |
KCT-FK50 | 600 | 2.5 | 5 | 7.5 | 10 |
800 | 5 | 7.5 | 10 | 15 | |
1000 | 5 | 10 | 15 | 20 | |
KCT-FK50B | 600 | 2.5 | 3.75 | 5 | 7.5 |
800 | 3.75 | 5 | 7.5 | 10 | |
1000 | 5 | 7.5 | 10 | 20 | |
| KCT-FK64 | 1000 | 5 | 10 | 15 | 20 |
1500 | 10 | 15 | 20 | 25 | |
2000 | 15 | 20 | 25 | 30 | |
Dimensional tolerance: ±1.0mm(unless otherwise specified) Lead tolerance: ±5mm
Model number | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
KCT-FK06 | 6 | 25 | 16 | 18 | 11 | 11 |
KCT-FK10 | 10 | 40 | 23 | 26 | 14 | 16 |
KCT-FK16 | 16 | 46 | 29.5 | 32 | 19.5 | 19 |
KCT-FK20 | 20 | 56 | 36 | 36 | 25.5 | 24 |
KCT-FK24 | 24 | 68 | 45 | 36 | 22 | 29 |
KCT-FK36 | 36 | 85 | 57 | 42 | 24 | 37 |
KCT-FK50 | 50 | 108 | 78 | 48 | 27 | 48 |
KCT-FK50B | 50 | 103 | 73 | 60 | 27 | 46 |
KCT-FK64 | 64 | 134 | 95 | 60 | 29 | 58 |
Vout=Is x RL RL≤10 Ohm
Note: This schematic shows the basic working principle of the transformer, which can be used to design the sampling circuit of the transformer for customers
