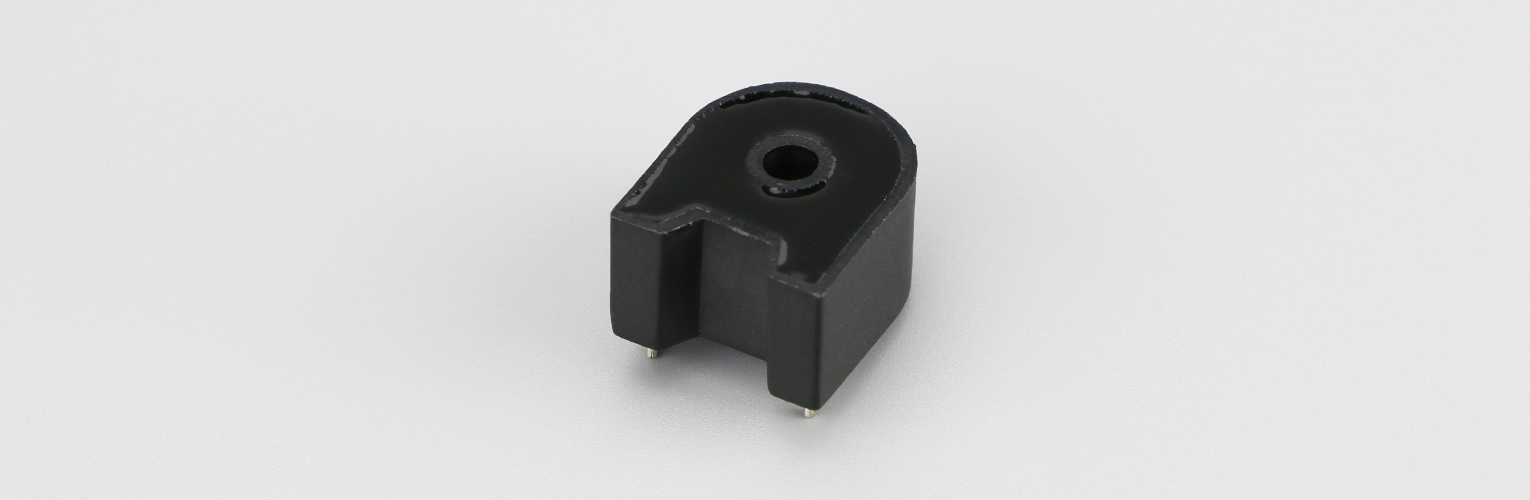

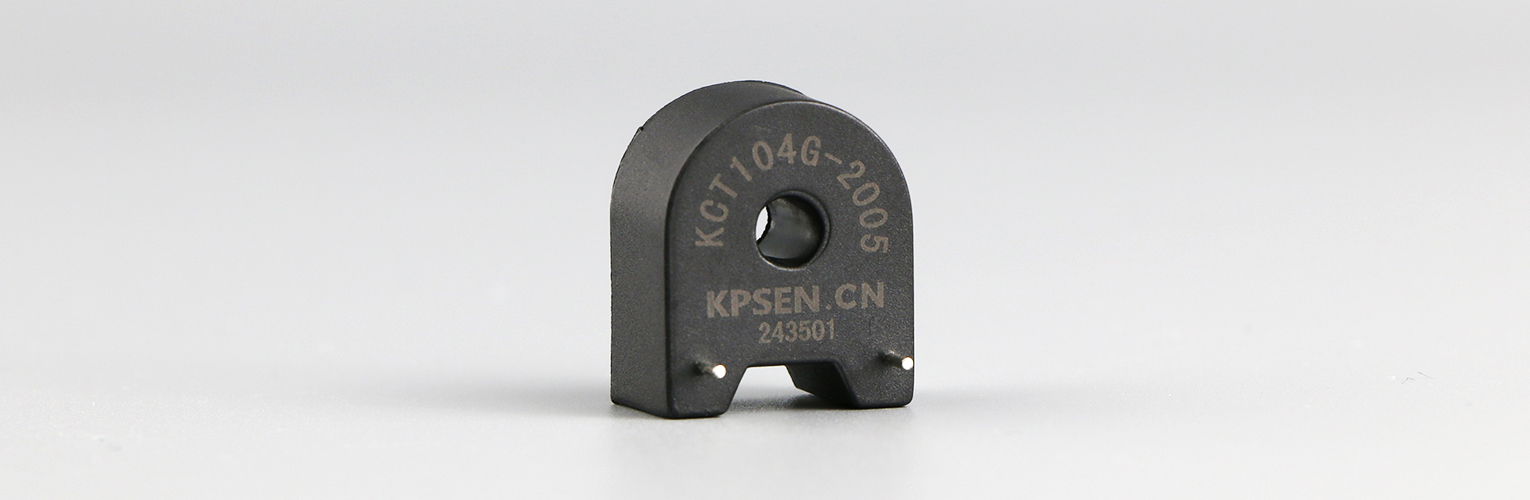

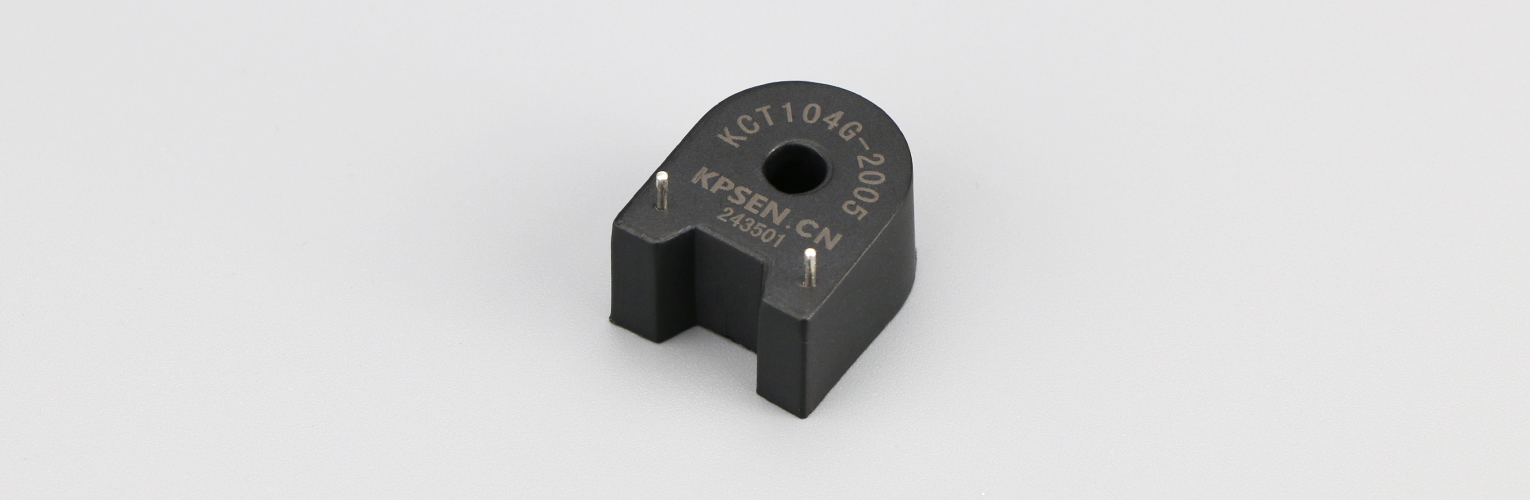

Rated current: 0~32A; Secondary output: 0~16mA; Current ratio: 1:1000/1:2000
Suitable for the need to convert large current into small current for precision measurement, or as electrical safety protection.
Passed ISO 9001:2015; Fully compliant with RoHS and REACH requirements
Nanocrystalline magnetic core (high precision, good linearity)
Epoxy potting, safe and reliable;
Flame retardant (according to UL94-V0);
Environmental protection (compliant with EU RoHS and REACH standards)
Small size, light weight, easy to assemble and weld.
Detecting overload current
Ground fault detection
Measure
Analog to digital circuits
Operating environment: temperature -40℃~ +85℃,
Storage environment: temperature -40℃~ +85℃,
Relative humidity: not more than 95%(25℃)
Reference standard: IEC 60044-1&GB&
T 20840.1-2017&ANSI C57.13
ELECTRICAL PROPERTIES(at 25°C) | ||||||||||
Model number | Rated current | Secondary current | Maximum current | Turn ratio | Linear range | Phase difference | Precision | Load resistance | Withstand voltage | Operating frequency |
KCT104G-1005 | 5A | 5mA | 7A | 1000:1 | 5~120% | ≤15’ | 0.1 | ≤10Ω | 4000V | 50Hz~20KHz |
KCT104G-2005 | 5A | 2.5mA | 16A | 2000:1 | 5~120% | ≤15’ | 0.1 | ≤20Ω | 4000V | 50Hz~20KHz |
KCT104G-2016 | 16A | 8mA | 32A | 2000:1 | 5~120% | ≤10’ | 0.1 | ≤20Ω | 4000V | 50Hz~20KHz |
KCT104G-2032 | 32A | 16mA | 40A | 2000:1 | 5~120% | ≤10’ | 0.1 | ≤20Ω | 4000V | 50Hz~20KHz |
Note: 1, pay attention to the load connected to the transformer secondary, exceeding the rated load capacity may lead to Precision reduction or saturation.
2, if the above table is not suitable for your use of products, we can according to your technical and structural requirements tailored to your products.

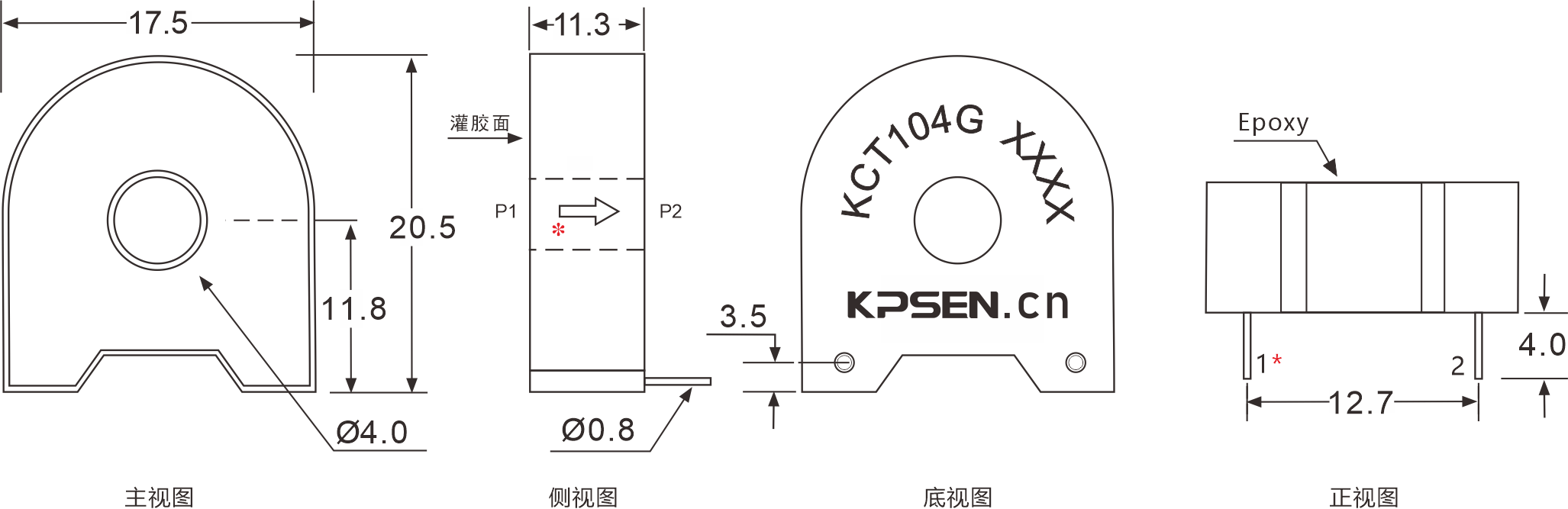

Unit of size： (mm）
Dimensional tolerance： ±0.5mm(unless otherwise specified), foot distance tolerance: ±0.3mm
Note: Terminal resistors and a turn primary are not provided unless requested
Vout=Is x RL RL=20 Ohm
Note: This schematic shows the basic working principle of the transformer, which can be used to design the sampling circuit of the transformer for customers
