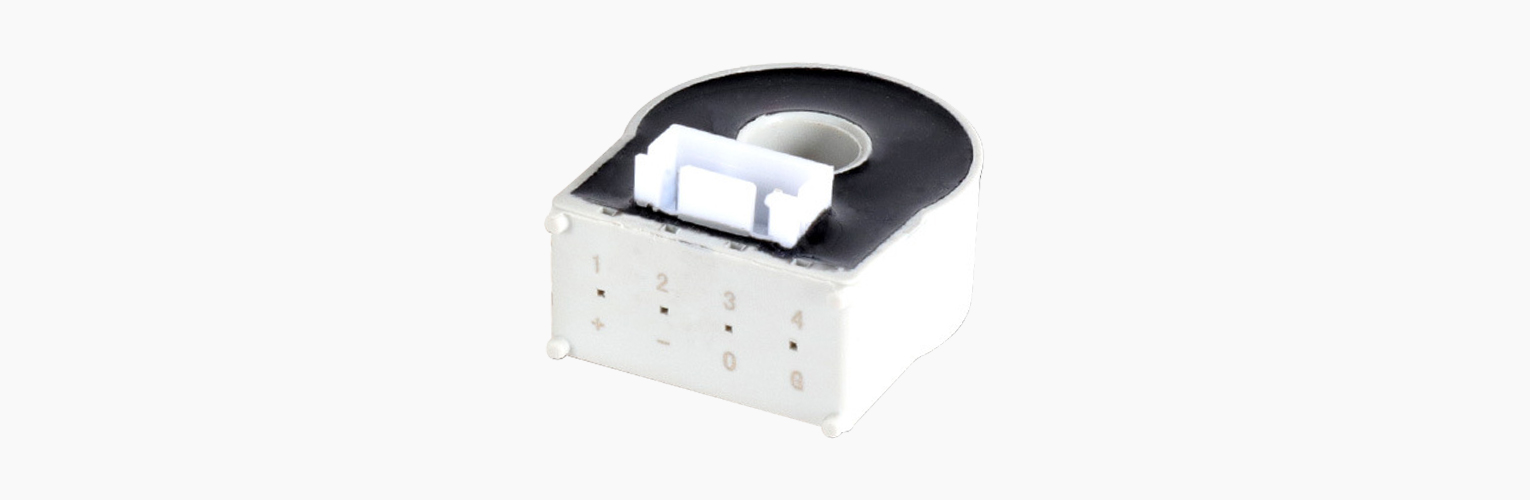

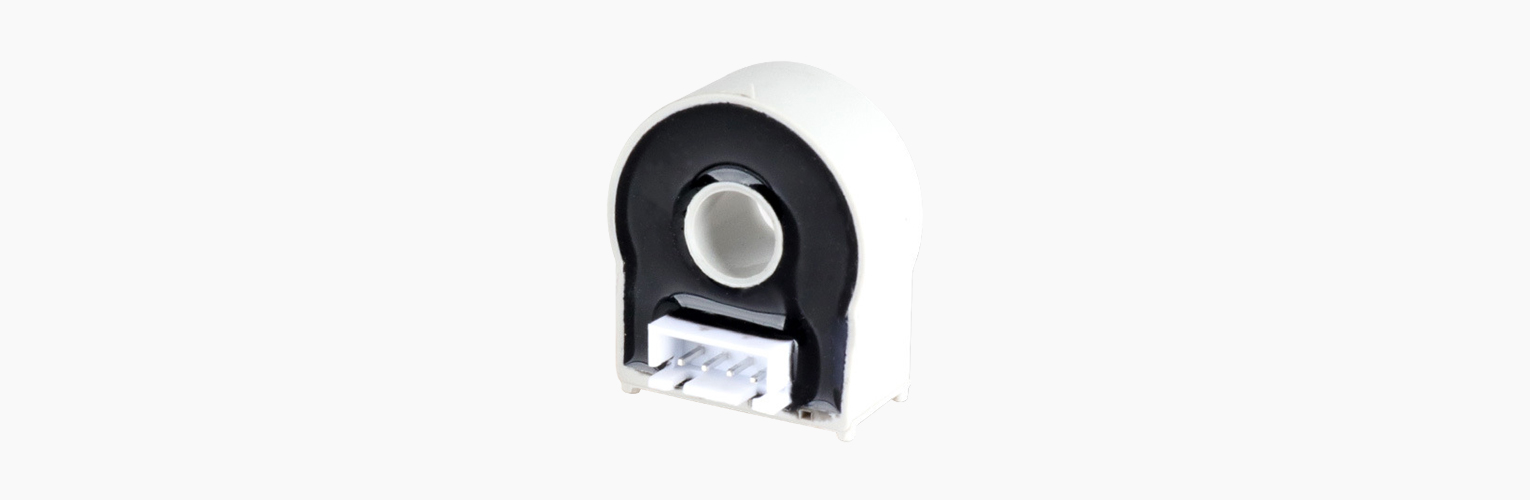

Rated measuring current: ±150mA; Measuring range: ±160mA; Rated output voltage: 2.5V±2V
Zero offset voltage: 2.5V±10mV; Power supply voltage: 5VDC (±5%)
Passed ISO 9001:2015; Fully compliant with RoHS and REACH requirements
Easy to install
Small size, save space
No insertion loss
Strong anti-interference ability
AC variable speed driver
DC motor drives static converter
Communication power supply
Uninterrupted power supply
Switching power supply
Electric welding machine
Passed ISO 9001:2015
Reference standard: JB/T 7490-2007;
Storage environment: Temperature -40℃~ +125℃, relative humidity: not more than 95%(25℃)
ELECTRICAL PROPERTIES(Environmental parameters are @TA = 25 ° C, RL = 10 kΩ unless otherwise stated) | |
Model number | KCS08DC-150mA |
Rated input IP | ±150mA |
Measure range IPM | ±165mA |
Rated output voltage VOUT | 2.5V±2V |
Offset voltage VO | 2.5V±10mV |
Supply voltage VC | +5VDC（± 5%） |
Load resistance RM | ≥10KΩ |
Linearity εL | ≤0.5%FS |
Overall accuraty X | ±1%FS |
Offset voltage drift VOUT | ±0.2mV/℃ |
Current consumption IC | ≤20mA |
Frequency bandwidth-3db BW | DC～30KHz |
Response time TR | <7us |
Galvanic isolation VD | 50Hz，1min，3KV |
Ambient operating temperature TA | -25～+85℃ |
Ambient storage temperature TS | -40～+100℃ |
Mass m | ≈16g |
Customized: If there is no suitable product for your use in the above table, we can customize the product according to your technical and structural requirements. Please contact us.

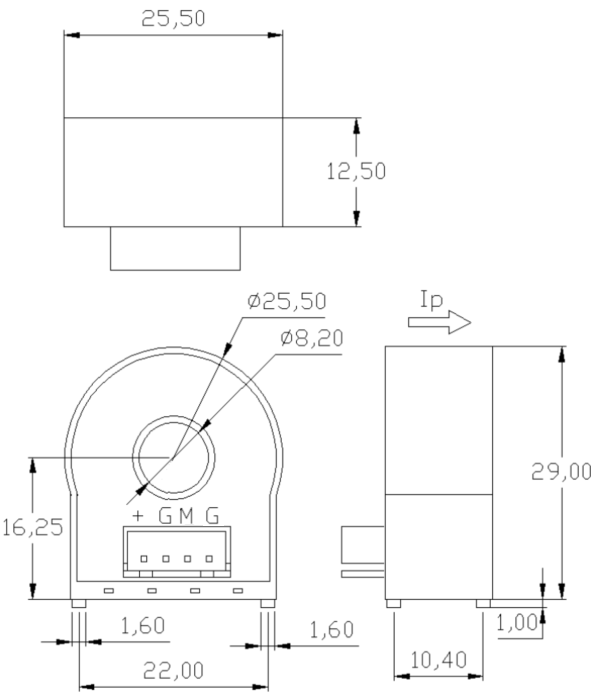

Mechanical characteristics | |
General tolerance | ± 0.5 mm |
Other tolerance execution | GB/T 1804-2000-M |
Fastening & connection of hole | Φ8.2mm |
Connection of secondary | HXB-4A |
Recommended wave soldering temperature | 265℃±5℃ |
Remarks:
The false wiring may result in the damage of the sensor.
VOUT is positive when IP flows in the direction of the arrow.
Dynamic performances (di/dt and response time) are best with a single bar completely filling the primary hole.
Temperature of the primary conductor should not exceed 100°C.
