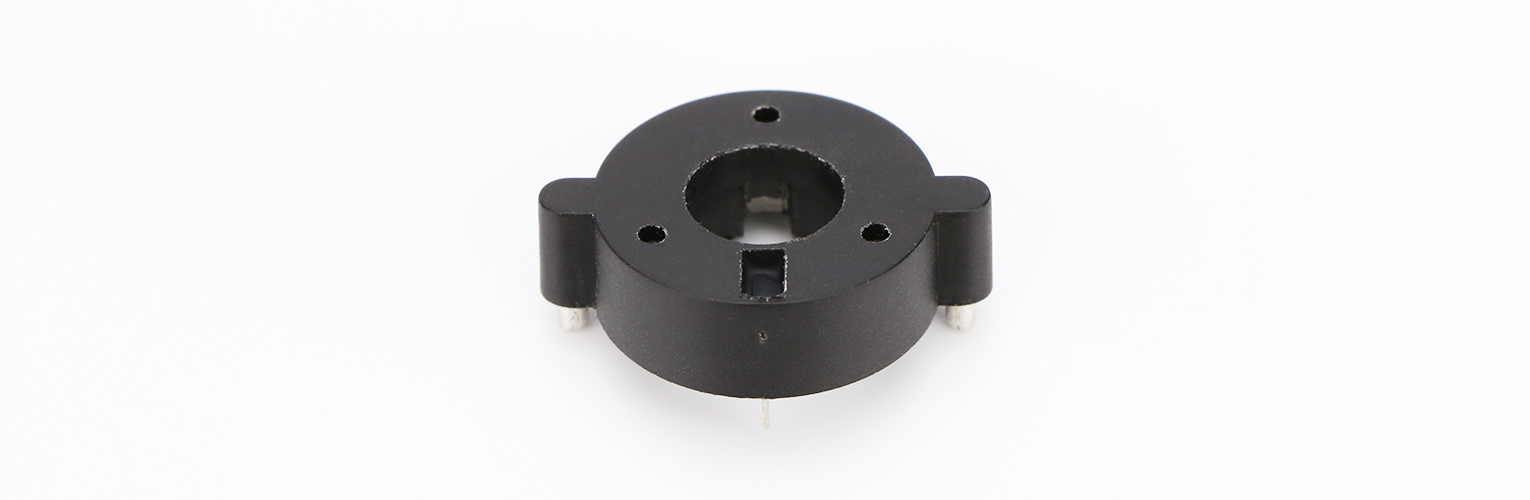

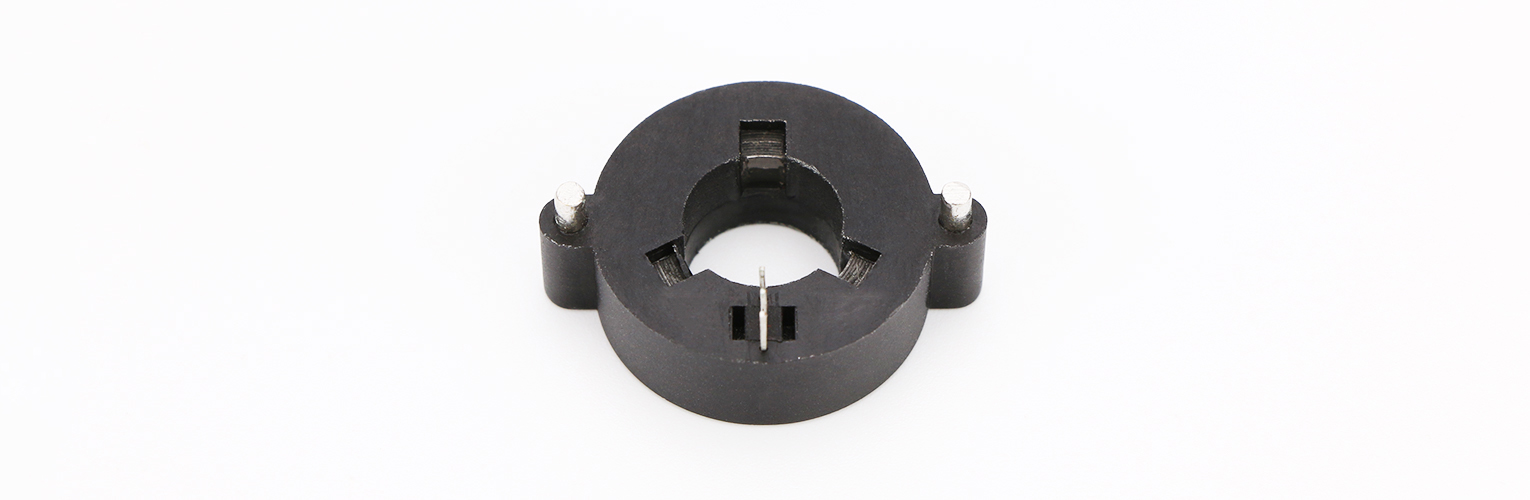

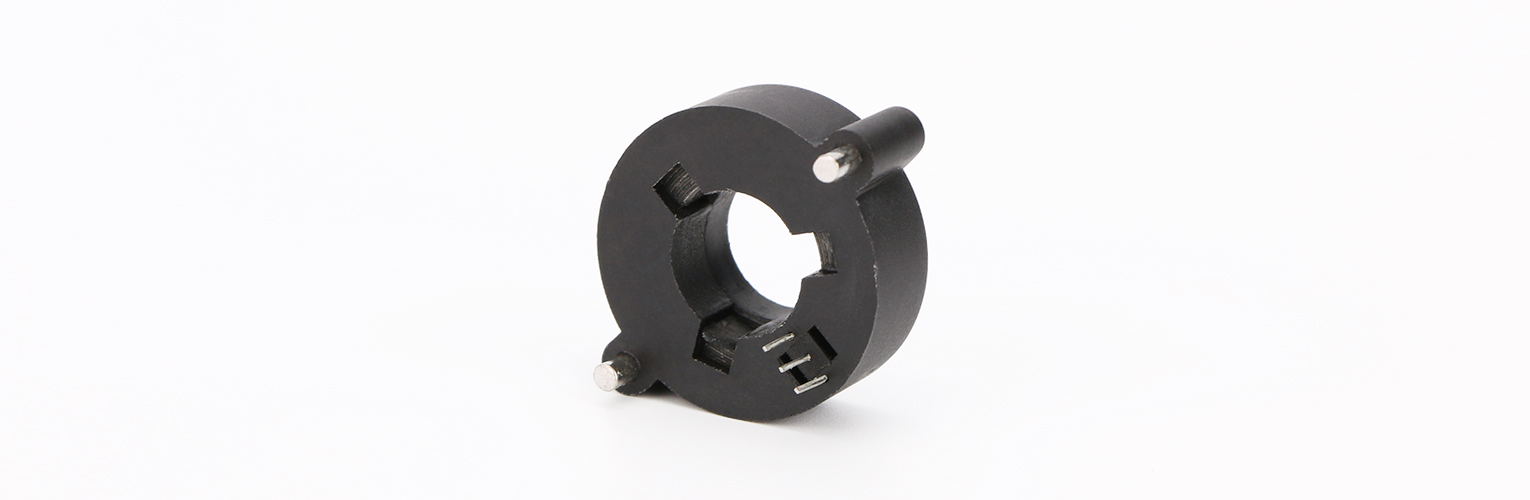

Product Overview

Rated measuring current: 100A~800A; Measuring range: ±110A~±880A; Rated output voltage: 2.5V±2V

Functional characteristics

Easy to install Small size, save space No insertion loss Strong anti-interference ability

AC variable speed driver DC motor drives static converter Communication power supply Uninterrupted power supply Switching power supply Electric vehicle

Passed ISO 9001:2015 Reference standard: JB/T 7490-2007 Storage environment: Temperature -40℃~ +125℃, relative humidity: not more than 95%(25℃)

Parameter specifications

ELECTRICAL PROPERTIES(Environmental parameters are @TA = 25 ° C, RL = 10 kΩ unless otherwise stated)
Model number	KCS10G-XXX IP500
Rated measuring current IP	100A	200A	300A	400A	500A	600A	700A	800A
Measuring range IPM	±110A	±220A	±330A	±440A	±550A	±660A	±770A	±880A
Rated output voltage VOUT	2.5V±2V
Zero. Offset voltage VO	2.5V±20mV 0.5 / 0 3.15
Supply voltage VC	+5VDC（± 5%）
Load resistance RM	≥10KΩ
linearity εL	≤0.5%FS
Overall accuracy X	±1%FS(@ TA = 25℃)
Zero offset voltage temperature drift VOUT	±0.2mV/℃
Amplitude voltage temperature drift VOUT	≤0.05%/℃
Static current consumption IC	≤20mA
Response time TR @90%	＜7us
Band width BW	DC～100kHz
di/dt follows accuracy	>50A/us
Insulation withstand voltage VD	50Hz，1min，2KV
Operating ambient temperature TA	-40～+125℃
Quality m	≈11g

Customized: If there is no suitable product for your use in the above table, we can customize the product according to your technical and structural requirements. Please contact us.

10G

Mechanical characteristics
General tolerance	± 0.5 mm
Other tolerance execution	GB/T 1804-2000-M
Fixing hole size	Φ2.0mm
Connection of secondary	0.5*0.5mm
Recommended wave soldering temperature	265℃±5℃

Remarks:

The false wiring may result in the damage of the sensor.

VOUT is positive when IP flows in the direction of the arrow.

Dynamic performances (di/dt and response time) are best with a single bar completely filling the primary hole.

Temperature of the primary conductor should not exceed 100°C.
